Mobile Dust Collection Unit

Mobile Dust Collection Unit
Mobile Dust Collection Unit

What is the “Mobile Dust Collection Unit”?

It is a product that uses a unique dust collection hood to collect dust generated in the weighing area, reducing dirt in the production area and the burden on workers.

3 Point Improvements Achieved by the “Mobile Dust Collection Unit

Point1

Environmental
Improvement

As one of the dust
control measures

Point2

Health
Management

Considers scattering
to workers

Point3

Low Budget

Because it is mobile,
it can be used in the
necessary places

Effects of Implementation (Before▶After)

Can be moved to each weighing station and used as needed.
When used in the process of weighing raw materials with a lot of dust, it will help reduce the burden on operators.

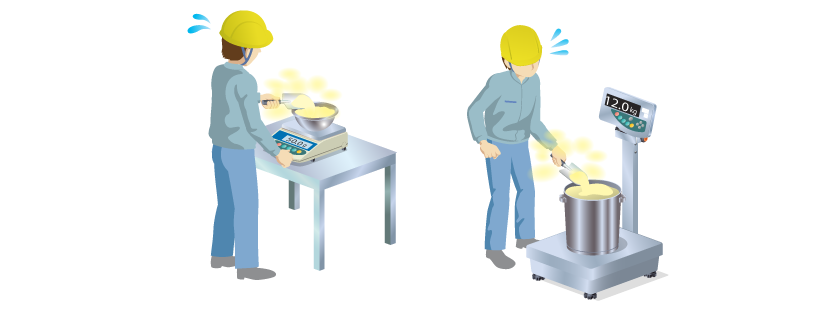

Before

Manual Weighing

手計量

after イメージ

After

Automatic Weighing

Automatic Weighing

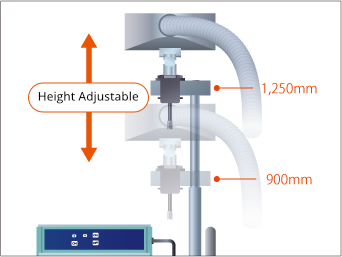

矢印Adjustable to an easy-to-use position

The height of the arm can be adjusted in 5 stages.

Height Adjustable

矢印Use it wherever you want.

Can be quickly moved to the desired weighing station.

Example of layout

Example of layoutExample of layoutExample of layout

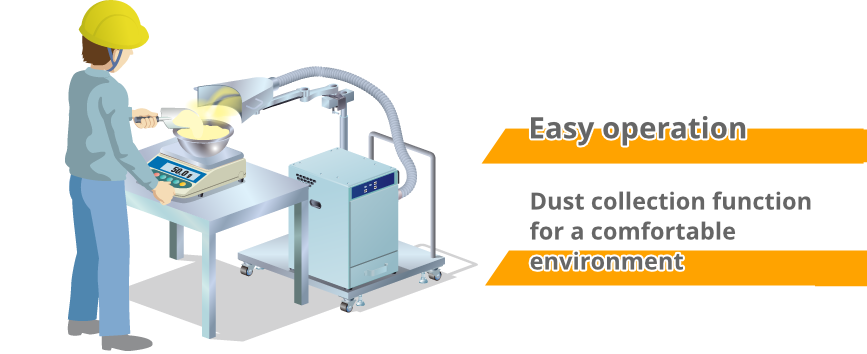

矢印Dust collection function

The dust that rises during raw material is sucked in by a uniquely designed dust collection hood, helping reduce contamination in the production area.

  • Before use

    Dust

  • 矢印
  • When Using Dust Collection Unit

    Dust collection function

Specifications

Equipment structure mobile cart, dust collector, vacuum cleaner with directional arm
Movement Method Manual push (with 4 casters)
Stand Height 900mm – 1250mm (height adjustable)
Dust Collection Device Small Dust Collector with Automatic Dust Removal Function, Maximum Air Volume 6 m³/min.
Equipment size 800W × 600D × 1700H mm Reference value Height depends on level adjustment

Can be customized to suit the location
of use and desired height.
