Powder Formulation Weighing Robot System

粉体配合計量ロボットシステム

Weighing and mixing
powder raw materials
ROBOT SYSTEM Powder Blending and Weighing Robot System

Robotic weighing and powder mixing system. It is a system that facilitates weighing and mixing in the research process automated by robots.

System Introduction Video

Product Features

  • Weighing Control System

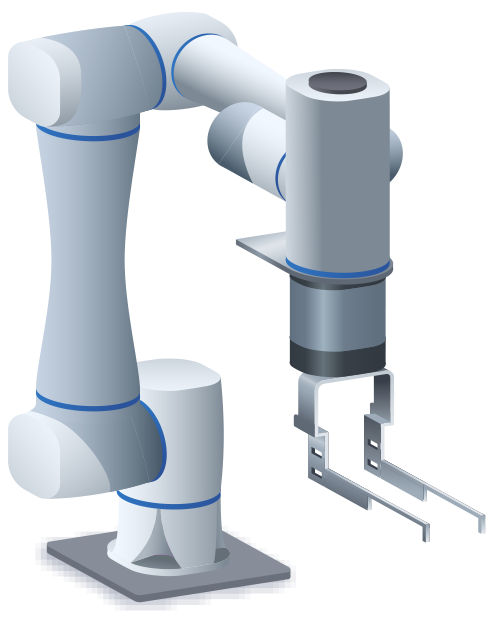

    Control the robot's operation according to the weighing value

    Controlling feedback from the control system to the robot

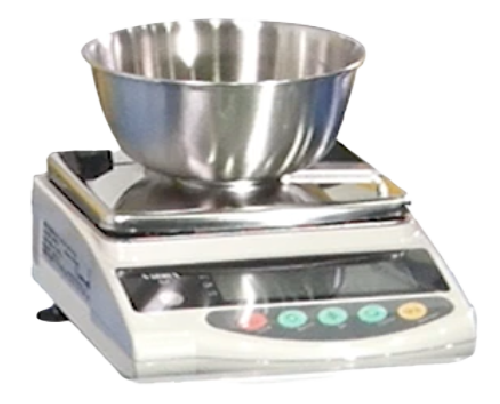

    • Scale

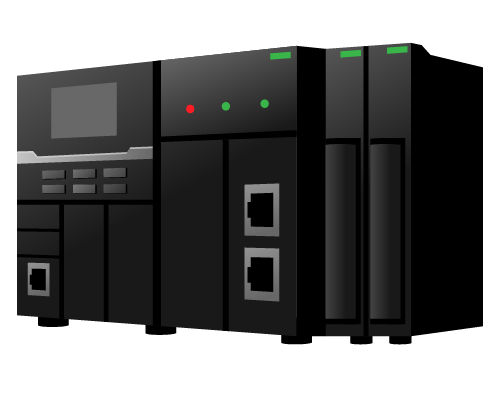

    • PLC
  • Powder Level Detection Sensor

    It uses a laser sensor with a built-in camera to detect the raw material powder level. And control the quantity to the most appropriate level

  • Weighing Accuracy

    Adjust the scooping amount and filling method according to the amount remaining from the set value. This prevents over-weighing and maintains the highest accuracy.

Specification

Product Name Powder Formulation Weighing Robot System

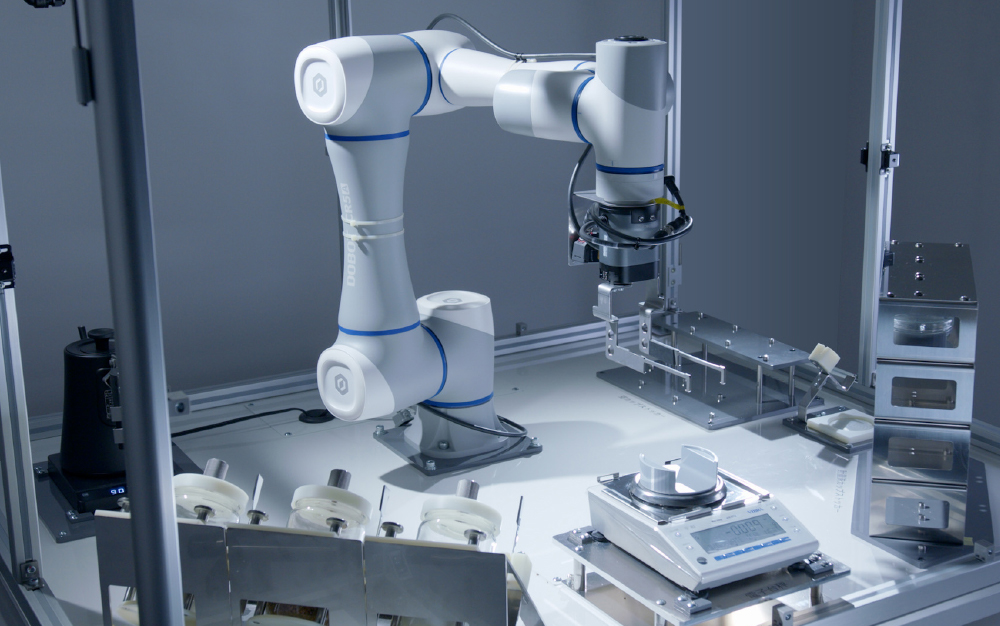

External appearance

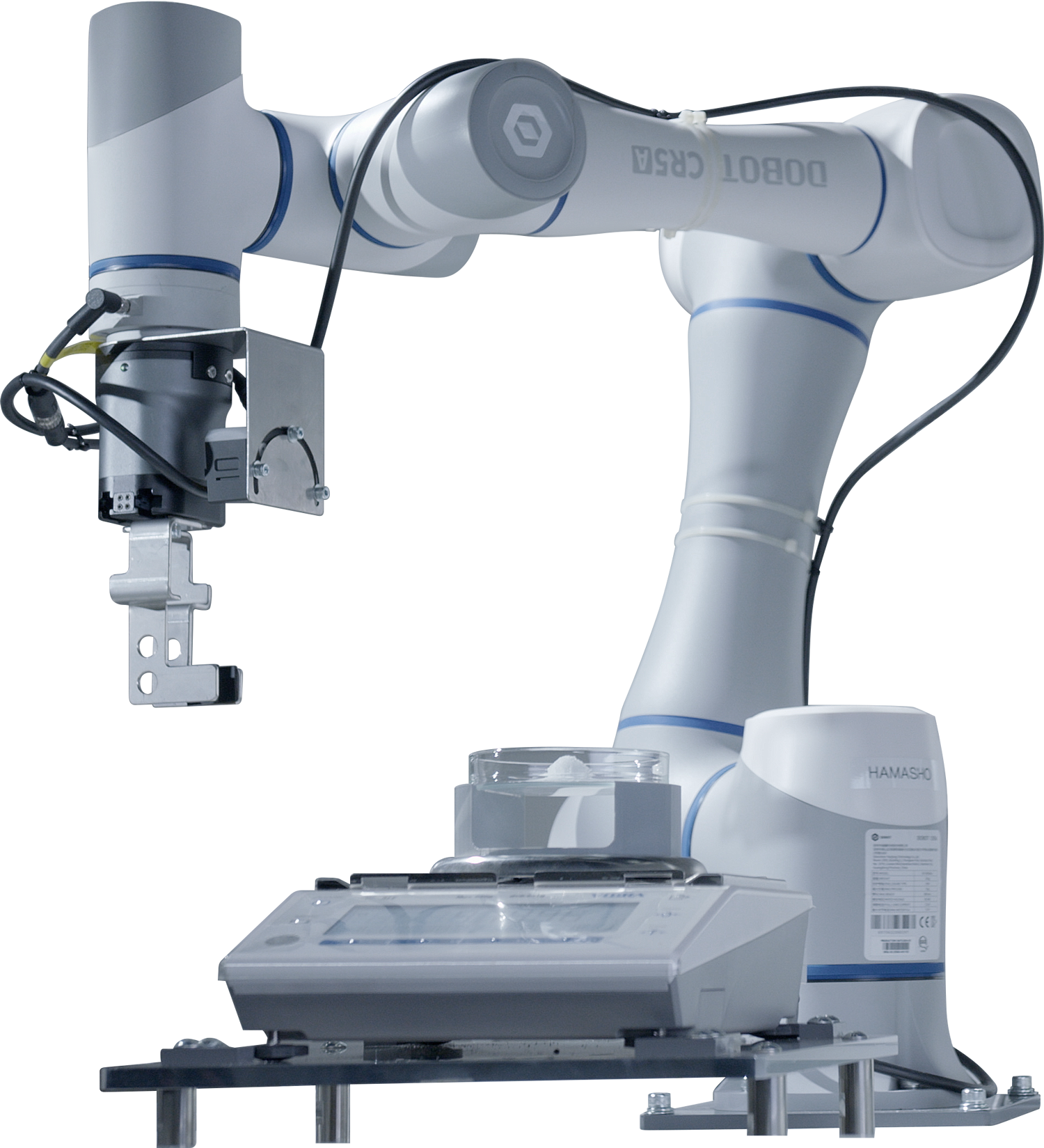

Robot Body DOBOT CR5A
Gripper DH-ROBOTICS PGC-14-50
Sensor KEYENCE IX-360
Camera-Equipped Laser Displacement Sensor
Weighing device SHINKO DENSHI Weighing Capacity 500g Minimum Display 0.001g
PLC KEYENCE KV-8000
Operation Panel General-Purpose Tablet
Screen Displayed via Web Browser
Power Supply Single-Phase AC100V, 500W
Equipment Size 1460W X 1460D X 1625H mm
We will consider the most suitable system
according to customer needs.

Hakaru Plus
As an expert in weighing powders and liquids
We support automation and reduction of labor.
To solve problems in the laboratory and production lines
By adjusting to suit each customer's environment.
