Manual Weighing Management System with Cart
What is “TMS-T”?

It is a system that records work instructions, weighing procedures, and results in order to prevent weighing errors caused by manual weighing.
This system helps prevent raw material errors and weighing errors because the light illuminates on the shelf of the raw material to be weighed and unlocks it.

3 Point Improvements by “TMS-T”

Point1

Raw Material Shelf

Lamp Lights Up
and Unlocks

Point2

Hand Cart

Streamline Raw
Material Transport

Point3

Weighing

Weigh and Record
Within Set
Value Range

Structure

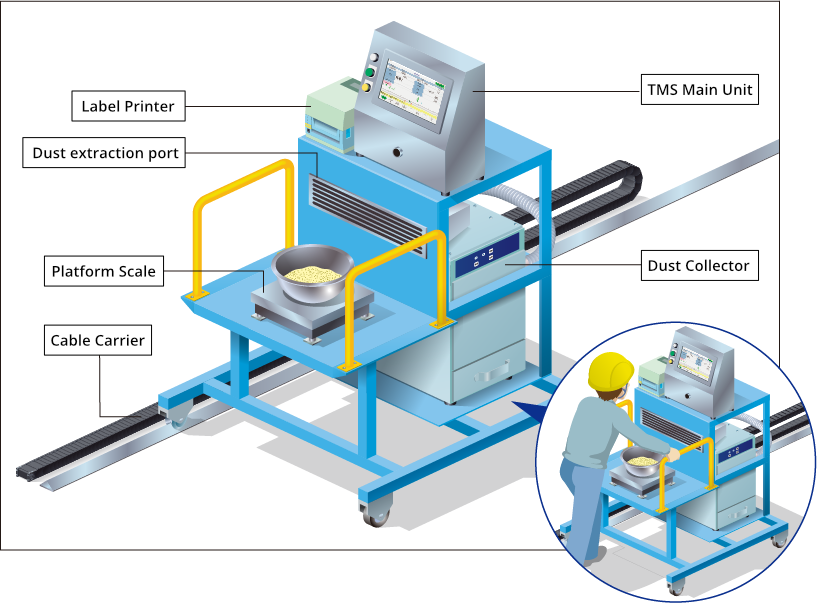

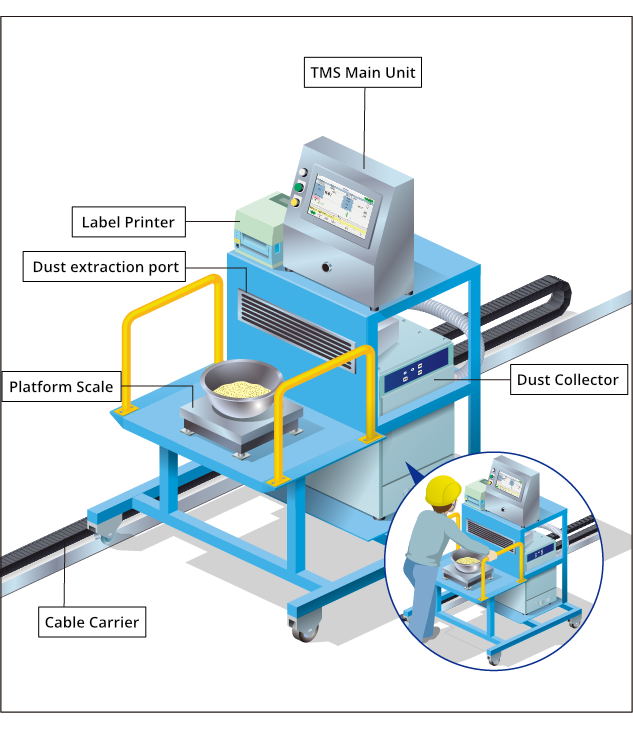

Hand Cart

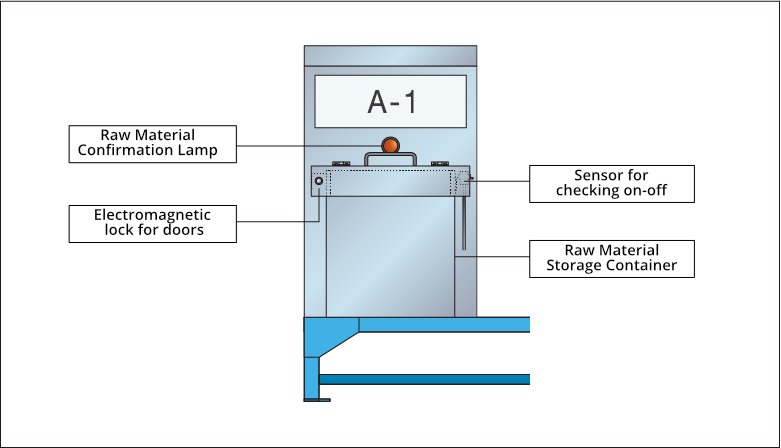

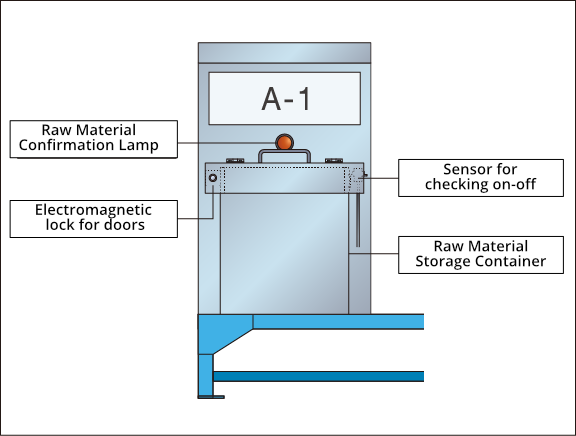

Raw Material Shelf


Specifications

Equipment Configuration Weighing Cart (with Platform Scale, Label Printer, Dust Collector), Raw Material Shelves (5 shelves x 2 rows)
Hand cart Equipped with 4 wheels and cable rails.
Scale Electronic platform scale 17kg (minimum display value 0.1g)
Dust Collection Device Small Dust Collector with Automatic Dust Removal Function, Maximum Air Volume 6 m³/min.
Main Power Supply AC100V, Single Phase, 50/60Hz
Weighing Cart Size 1000W × 1150D × 1600H mm
Raw Material Shelf Size 2900W × 700D × 1100H mm (※Size for 5 shelves x 1 row)

We Also Support Customized Designs Tailored
to Customer Requirements, Such as the Number
and Capacity of Raw Material Shelves and Weighing Capacity.
