Automatic Blending Weighing Machine TSU-CW5

Reduce mixing errors to zero. Automatic Blending Weighing Machine TSU-CW5
Reduce mixing errors to zero. Automatic Blending Weighing Machine TSU-CW5

What is “TSU-CW5”?

A system that automatically weighs five types of powdered raw materials according to the recipe.
This system enables labor-saving, reduces weighing errors, and serves as a dust control measure in the workplace.

3Point Improvements by “TSU-CW5”

Point1

Labor-saving

Minimize
heavy labor

Point2

High precision

Highly accurate
and precise
weighing

Point3

Environmental
improvement

As one of the dust
control measures

Effects of Implementation (Before▶After)

Normally, weighing according to the formula table must be repeated.
Weigh → Pour into container, Weigh → Pour into container.
But with this system you can perform mixing and weighing operations automatically.
Just register your production recipe in advance and configure the weighing values.
Then enter the production quantity (number of batches) and it can be processed immediately.

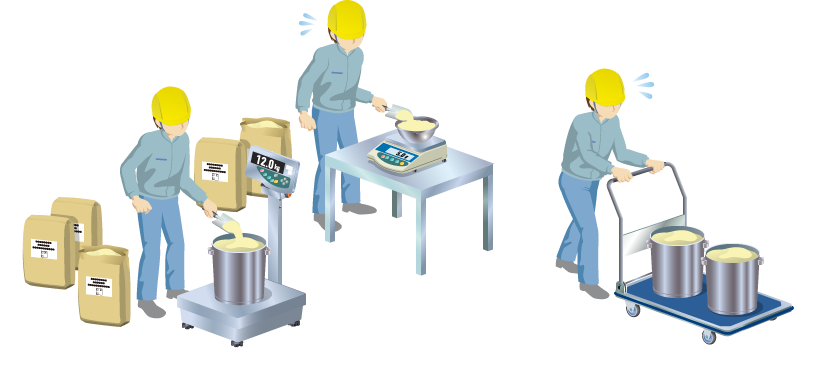

Before

Manual Weighing

before イメージ

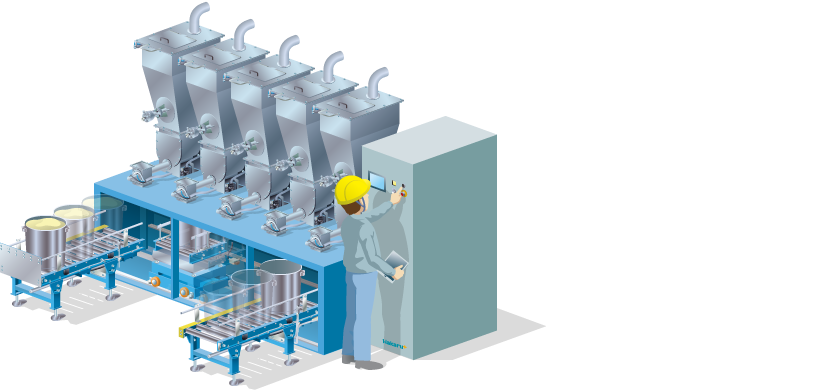

after イメージ

After

Automatic Weighing

after イメージ

Easy Operation

Just enter the production quantity (batch count)
and it can proceed immediately.

Options

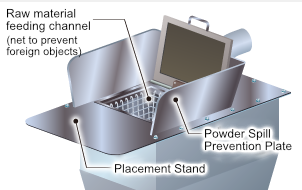

Dust Control Feeding Hood

A feeding hood designed for environmental improvement, reducing dust dispersion when transferring raw materials from paper bags into the tank.

Options

● With three-sided enclosing plates and a dust collection mechanism at the rear of the hood,
it minimizes dust dispersion during raw material feeding.

● By placing the raw material bag on the placement stand in front of the inlet,
even heavy raw materials can be easily fed, reducing the burden on workers.

Specifications:Supports automatic weighing from 50g to 20kg!

Storage Tank Size Capacity 100L (Water Drain) × 5 units
Accessories Raw material feeding hood, anti-bridging agitator, air knocker, etc.
Supply Device 50A Single-Axis Screw Feeder × 5 units
Supply Capacity 65kg/h (when bulk density is 0.5 and filling rate is 90%)
Weighing Machine Electronic scale 30kg (Minimum Display 0.1g)
Weighing Accuracy ±1% of the set value (depending on powder properties)
Equipment Size 3500W × 1200D × 2000H mm (Reference value: depends on equipment specifications)

Customized design available based on raw materials
and required specifications,
including storage tanks and supply devices.
