Automatic Big bags packing machine TSU-FP1

一Suppresses dust dispersion and automatically fills big bags! TSU-FP1 Automatic Bulk Bag Filling Machine
Suppresses dust dispersion and automatically fills big bags! TSU-FP1 Automatic Bulk Bag Filling Machine

What is “TSU-FP1”

A device that automatically fills bulk bags with raw materials.
The air ball expansion and contraction completely seals the bag opening, suppressing dust dispersion.
After filling, it can be transported directly with a pallet truck.

3 Point Improvements by “TSU-FP1”

Point1

Environmental Improvement

As one of the dust
control measures

Point2

Labor-Saving

Minimize
heavy labor

Point3

Pitless

No need for
platform scale
embedding

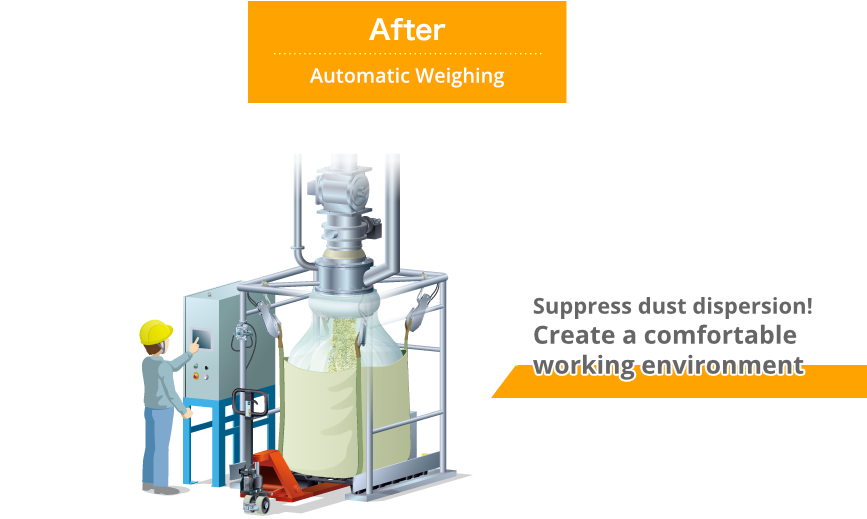

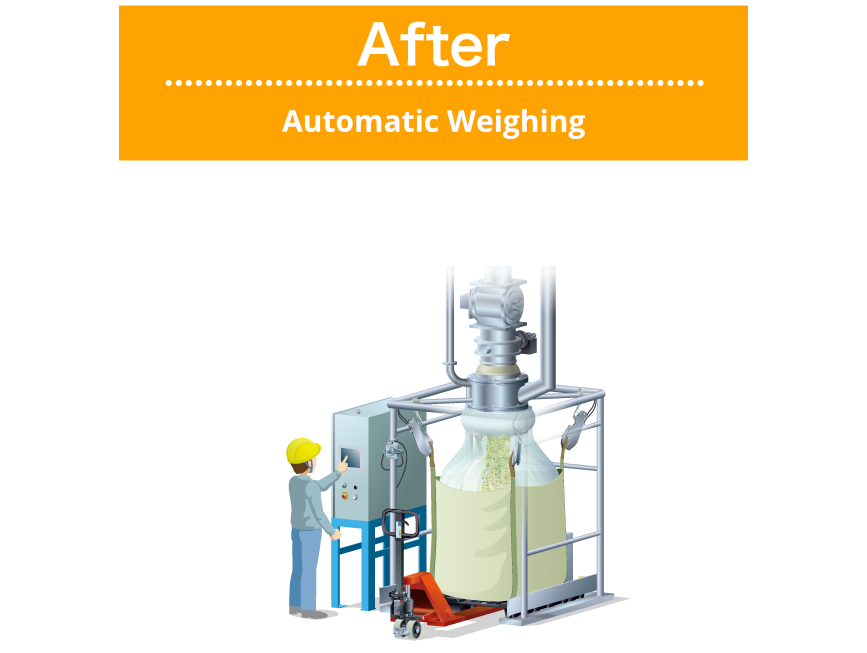

Effects of Implementation (Before▶ After)

The bulk bag opening can be completely sealed to suppress dust dispersion.
After filling, it can be transported directly with a pallet truck, minimizing heavy labor.

Before

Manual Weighing

Manual Weighing矢印Automatic WeighingAutomatic WeighingAutomatic Weighing

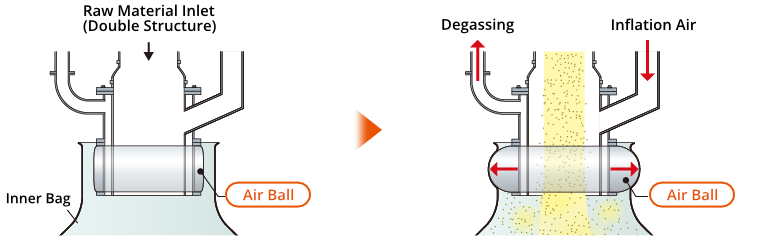

Sealed with an air ball to suppress dust dispersion

Specifications

Raw Material Type One type of powdered raw material (stored in an existing tank or silo)
Accessories Air ball for sealing the material inlet, removable strap hooks (blower for inflation not included)
Supply Device Rotary valve or butterfly valve (can also be manufactured by our company)
Filling Capacity Depends on the existing supply device (if manufactured by our company, supply capacity can be discussed separately)
Weighing Machine Load cell platform scale 500kg (Minimum Display 0.2kg)
Weighing Accuracy ±1kg (Reference value: depends on powder properties and supply device)
Equipment Size 1300W × 1300D × 1800H mm (Reference value: depends on equipment specifications)

Supports various types of powder
through customized design tailored to customer specifications.

Contact us to inquire about products here.

Please feel free to contact us for a consultation!
