What is “TSU-LC10”?

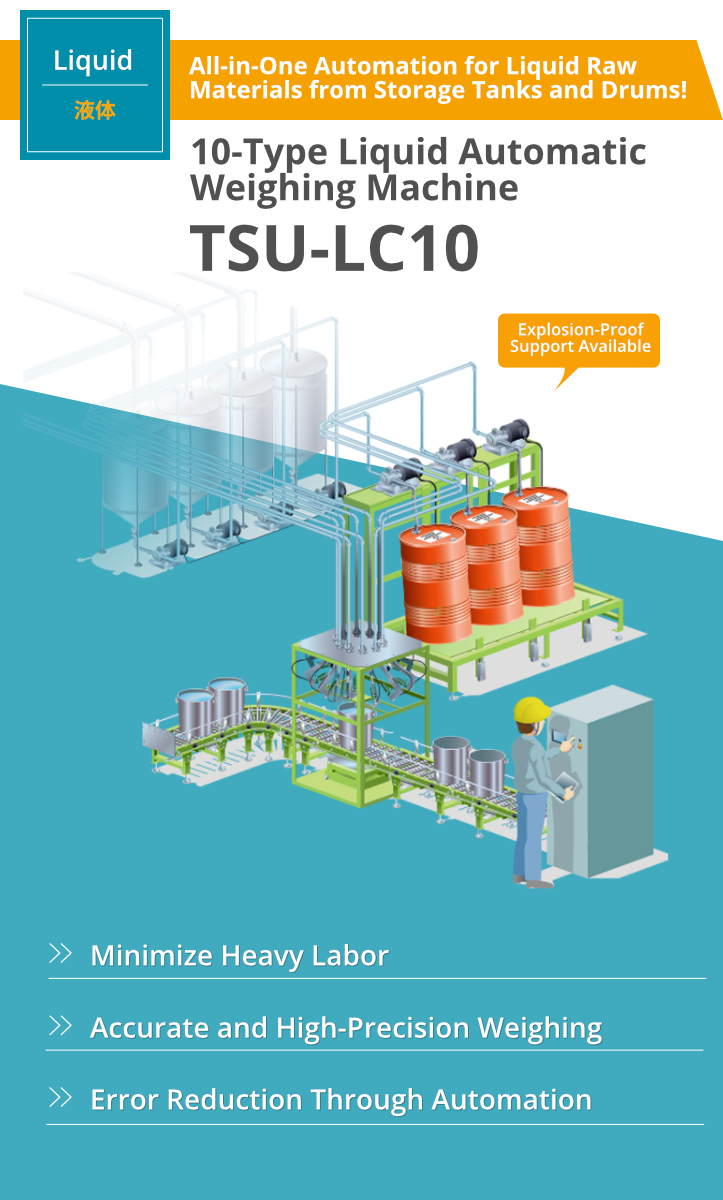

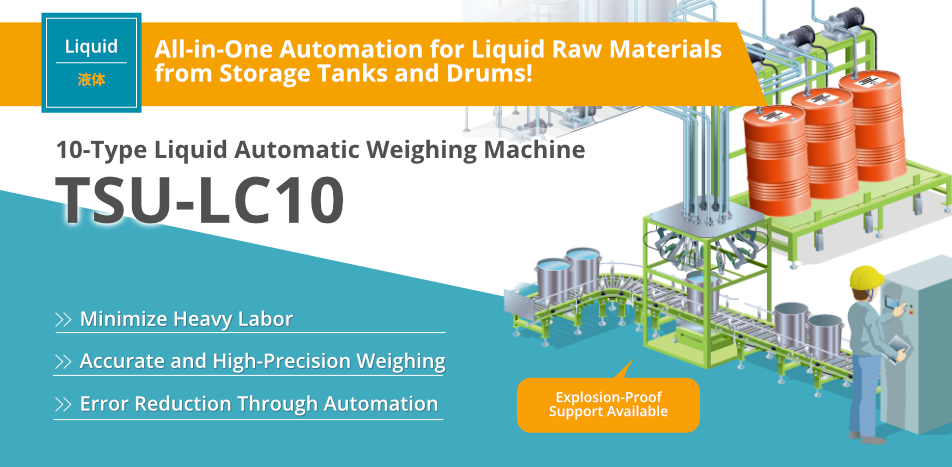

A single weighing machine can automate liquid raw materials in storage tanks or drums.
The swing arm filling nozzle enables labor saving and reduces weighing errors in limited spaces.

3 Point Improvements by “TSU-LC10”

Point1

Labor Saving

Minimize
Heavy Labor

Point2

High Speed &
High Precision

Accurate and
High-Precision
Weighing

Point3

Weighing Error
Reduction

Error Reduction
Through Automation

Effects of Implementation (Before▶After)

It is possible to automatically perform weighing according to the mixing recipe, instead of the conventional manual weighing.Simply select a pre-registered mixing recipe and enter the production quantity (number of batches) to complete the process.The remaining time can be used for other tasks, creating an efficient working environment.

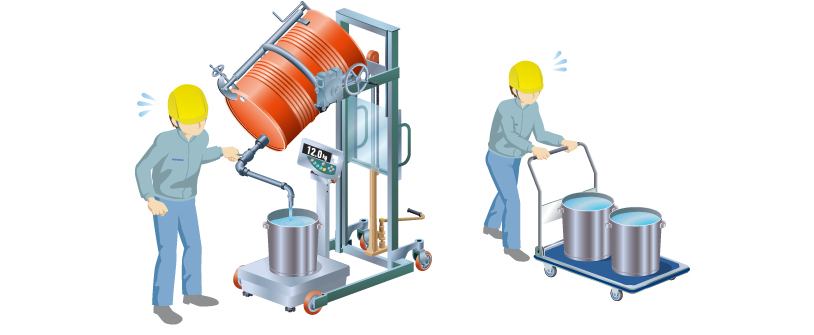

Before

Manual Weighing

After

Automatic Weighing

Easy Operation

Simply enter the production quantity (number of batches)
to complete!

Space-Saving Design

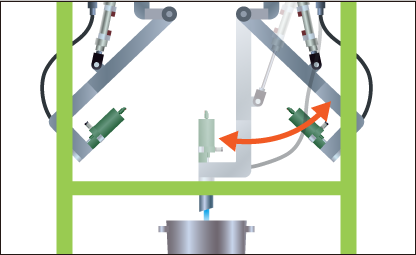

The arm for weighing raw materials moves to the center of the weighing container and fills it, allowing for weighing in containers of various sizes.

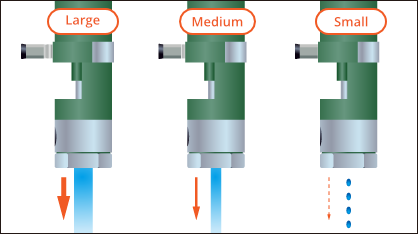

3-Tier Filling Nozzle

Three-Stage Switching System (Large, Medium, Small) Achieves High Speed and High Precision.

Specifications Automatic Weighing from 100g to 20kg is Possible!

Raw Material Type	10 Types (Liquids Transported from Indoor/Outdoor Storage Tanks or Drums via Piping)
Accessories	Supply Device Mounting Arm (Swing Type), Flexible Hose for Liquid Transfer, etc.
Supply Device	Variable Flow Valve (Three-Stage Switching System: Large, Medium, Small) × 10 Units
Supply Capacity	200 kg/h (At a Temperature of 20°C, Water, Viscosity ≈ 1 cps, Specific Gravity 1.0)
Weighing Machine	30 kg Electronic Platform Scale (Minimum Display 0.1 g)
Weighing Accuracy	±1% of Set Value (※Depends on Powder Material Properties)
Weighing Unit Section	1100W × 1100D × 1700H mm (※Reference Value: Depends on Equipment Specifications)

We have a proven track record of automating up to 25 types.
We also support customized designs tailored to raw materials,
viscosity, specific gravity, and other required specifications.
