What is the 18-Liter Can Automatic Filling Machine “TSU-LF1”?

It is a device for automatically filling liquid materials into 18-liter cans.
It detects weight changes, raises and lowers the filling nozzle, maintains a constant height between the nozzle tip and the liquid surface, and enables filling without foaming.

3 Point Improvements by “TSU-LF1”

Point1

Labor Saving

Automated
Repetitive Tasks

Point2

Foam Prevention

Liftable Nozzle
Prevents Foaming

Point3

Space Saving

Installable
Even in
Tight Spaces

Effects of Implementation (Before▶After)

Automating the weighing tasks that were previously performed manually,
and enabling filling without foaming.
This allows for other tasks to be performed during weighing, resulting in improved productivity.

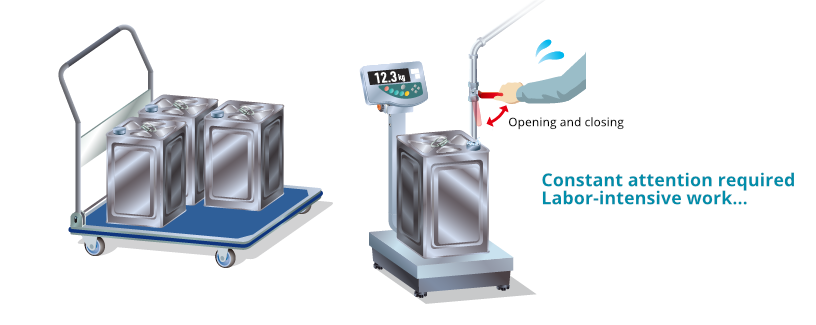

Before

Manual Weighing

Manual Weighing
矢印

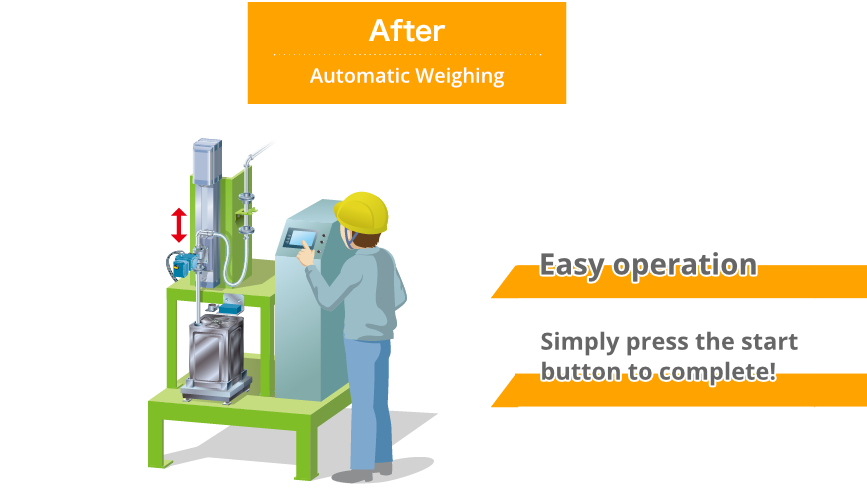

Automatic Weighing

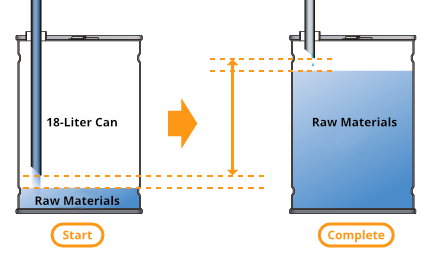

矢印Foam prevention control

Detects changes in weight and adjusts the level of the dispenser head up and down.
Helps maintain a constant height between the tip of the dispenser and the liquid surface.
Makes it possible to pack without foaming.

SpecificationsAutomatic Dispensing/Filling into 18-Liter Cans is Possible!

Raw Material Type One type of liquid raw material (stored in a tank)
Accessories Filling nozzle lift system, liquid drip prevention tray, etc. (liquid transfer pump not included)
Supply Device Lift-type filling valve (maintains a constant height from the liquid surface during filling)
Filling Capacity 1000kg/h (at 20°C temperature, water, viscosity approx. 1cps, density 1.0)
Weighing Machine Load cell platform scale 30kg (Minimum display 10g)
Weighing Accuracy ±50g (depends on liquid properties)
Equipment Size 1000W × 1000D × 2000H mm (Reference value: depends on equipment specifications)

Customized design available to accommodate
raw material properties such as viscosity and density,
based on customer specifications.

Contact us to inquire about products here.

Please feel free to contact us for a consultation!
