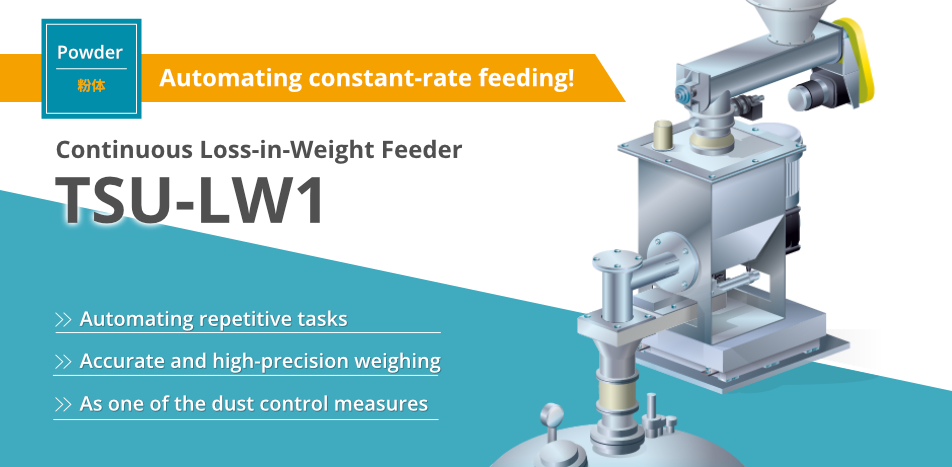

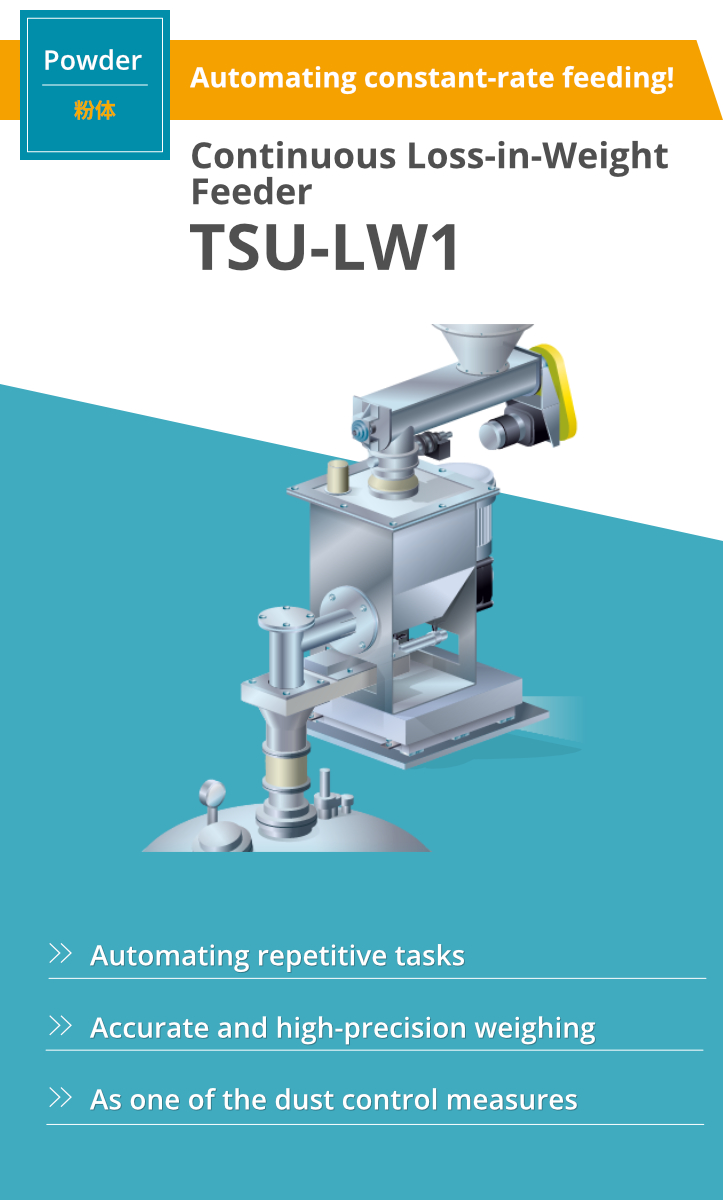

Continuous Loss-in-Weight Feeder TSU-LW1

Continuous Loss-in-Weight Feeder TSU-LW1
Continuous Loss-in-Weight Feeder TSU-LW1

What is “TSU-LW1”?

It is a device used for dispensing powdered raw materials in a specified amount per unit of time.
The dedicated controller calculates the reduction in weight and elapsed time to determine the supply amount.
It then feeds back the difference from the target supply amount and adjusts the feeder’s rotation to match the target value.

3 Point Improvements by “TSU-LW1”

Point1

Labor-saving

Automating
repetitive tasks

Point2

High precision

Accurate and
high-precision
weighing

Point3

Environmental
improvement

As one of the dust
control measures

Functions

矢印Structural Diagram

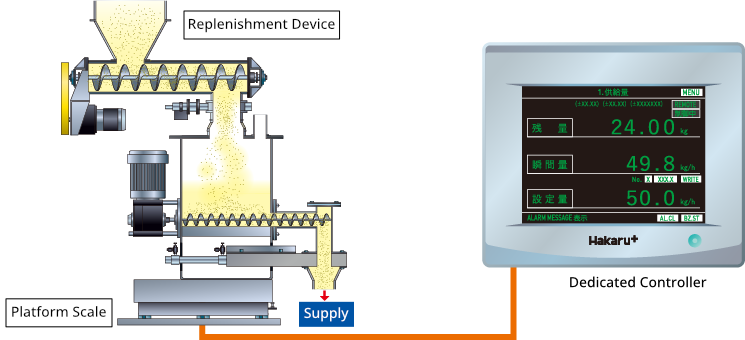

Structural Diagram
矢印Feedback Control

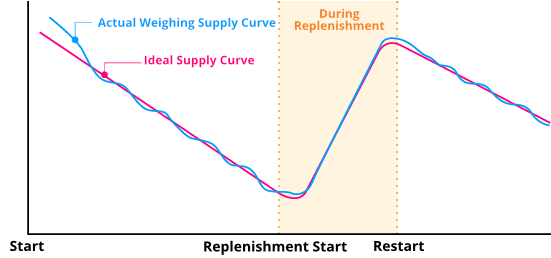

Feedback Control
矢印Connect to a platform load cell scale
Feedback Control

By connecting to a platform load cell scale
Able to dispense powdered raw materials
in specified quantities precisely.

SpecificationsSupports automatic weighing of over 20kg/h!

Storage Tank Size Capacity 20L (Water Drain)
Accessories Shutter gate, dedicated controller, etc.
Supply Device 40A Single-Axis Screw Feeder
Supply Capacity Over 20kg/h (Volume density 0.5, filling rate 90%)
Scale 60kg platform load cell (minimum display value 10g)
Supply Accuracy ±1% of set value (depending on the properties of the raw material powder)
Equipment Size 400W × 800D × 700H mm (Reference value: depends on equipment specifications)

Can be designed and customized to suit the properties
of each type of raw material powder.

Contact us to inquire about products here.

Please feel free to contact us for a consultation!
